What is shock loading in arborist rigging and how do I prevent it?

Understanding Shock Loading in Arborist Rigging

If you've worked in tree care, you've heard that violent "thwack" when heavy wood hits the end of a rigging line and the entire tree shudders. That sound is shock loading—the invisible force that snaps ropes, explodes blocks, and pulls out anchor points. Most arborists understand that dropping heavy logs is dangerous, but few grasp the physics happening behind the scenes.

Shock loading is the difference between a rope's static rating and the dynamic forces it actually experiences during a catch. Understanding these forces means the difference between going home safe and a catastrophic equipment failure.

The Great Misconception: Static vs. Dynamic Load

The biggest mistake arborists make is assuming a 500-pound log generates only 500 pounds of force on the rope. This is dangerously wrong.

When a log sits on the stump, it has static weight. The moment it falls, gravity builds kinetic energy. When the rope catches that wood, all that energy must go somewhere—this is peak force.

Depending on fall distance and rope type, a 500-pound log can easily generate 3,000 to 5,000 pounds of force at the moment of catch. This is the critical difference between a static load and a dynamic load. If your rigging system is only rated for the log's static weight, you're playing Russian roulette with your crew's safety.

Fall Distance and Slack: The Primary Shock Loading Factor

The distance a log falls before the rope begins working is the single most important factor in calculating shock load. This is called the fall factor.

If your rigging block is set 10 feet below the cut and you drop a log, that wood falls 20 feet before the rope even tightens. By the time it's caught, the log is moving fast and carries enormous energy.

Positive vs. Negative Rigging

Positive rigging: The load is pre-tensioned, so there's no free fall and minimal shock load.

Negative rigging: The wood must fall past the anchor point, forcing the rope to catch a moving load. This is far more taxing on equipment. Every inch of extra slack you leave in the line adds hundreds of pounds of potential force to your terminal tackle.

Rope Elongation and Elasticity: Your Shock Absorber

Not all rigging ropes are created equal when catching falling branches. The choice between a static rope and a dynamic rope can be a life-or-death decision.

Think of your rigging line like comparing a rubber band to steel wire:

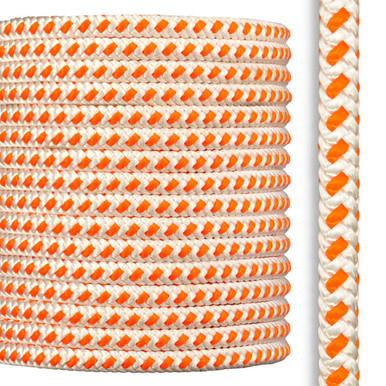

• High-elongation ropes (like TreeBLITZ Arborist Rigging Rope with a polyester cover for abrasion resistance and nylon core for stretch) act as shock absorbers. When the log hits the end of the line, the rope stretches, increasing the time it takes to stop the load. More stopping time = less force on the system.

• Zero-stretch ropes (like UHMWPE) stop the load nearly instantaneously. Without stretch to absorb energy, the force transfers directly into your hardware and tree, risking catastrophic failure.

Use arborist-specific rigging lines designed with the "give" needed to absorb shock loads safely.

The Anchor Point and Tree Leverage

While arborists often focus on the rope, the tree itself is the most important component of the system.

When you catch wood in a rigging block, you create a giant lever. If your block is set at the very top of a tall, skinny spar, the shock force is multiplied by the trunk's length, putting massive stress on the root system and lower trunk.

The rope angle through the block also creates a resultant force. If the rope goes up from the ground, through the block, and back down to the log, the force on that block and sling is actually double the tension in the rope.

Example: If your rope experiences 5,000 pounds of shock load, your block and attachment point might feel 10,000 pounds.

This is why your slings and blocks must have significantly higher breaking strength than your main rigging line.

Friction: Bleeding Off Energy Through Heat

To manage massive shock forces, use friction devices like bollards or Port-a-Wraps. Friction is the ultimate secret to reducing shock load.

By allowing the rope to slip slightly through the friction device during the catch, the ground worker increases the "stopping distance" of the log, bleeding off energy as heat rather than snapping the rope.

The trade-off: Synthetic fibers melt. Heavy wood with rope slipping generates intense heat that can glaze the rope's fibers. A glazed rope is a dead rope.

You must find the sweet spot: let the rope run enough to save the tree and gear from shock load, but not so much that you cook the line or lose load control entirely.

Estimating Shock Forces Without a Calculator

Most arborists ask how to estimate shock forces without carrying complex equipment up the tree. A useful rule of thumb is the 10-to-1 safety factor: if you estimate a log weighs 200 pounds, your system should handle 2,000 pounds of force.

However, this can be misleading with great fall distances.

Also consider cycles to failure. A rope rated for 10,000 pounds gets weaker with each shock load event due to micro-tearing of internal fibers. Just because it held yesterday doesn't mean it will hold today.

Constant inspection is critical. Look for:

• Flat spots
• Stiff sections
• Discoloration indicating over-stress

Check out our guide on when to replace a rope and signs of wear and damage to keep your equipment in peak condition.

Hardware Limitations and Projectile Risk

Rope often gets all the attention, but hardware is frequently the weakest link.

Carabiners, blocks, and rings all have a Working Load Limit (WLL) and Minimum Breaking Strength (MBS). The WLL is usually only a small fraction of the MBS. When you shock load a system, you almost always exceed the WLL.

Unlike rope, metal doesn't stretch—it deforms or shatters. A failed block or carabiner becomes shrapnel traveling 100+ mph. Cases of blocks penetrating truck windshields exist because someone overestimated their hardware's durability.

Match your hardware to potential shock loads, not just the static weight of timber.

Load Monitoring: Modern Technology

In recent years, load cells and digital monitoring have entered the field. High-end crews now use devices like Impact Blocks with built-in sensors that measure exactly how many kilonewtons of force a drop generates.

This data has been a wake-up call for the industry, proving that many have underestimated shock loads for decades. Even small limbs falling a few feet can generate forces exceeding standard hardware working load limits.

While you may not need thousand-dollar digital blocks for every job, pay attention to this data. It teaches humility and the importance of over-building systems whenever possible.

Practical Strategies to Reduce Shock Loading

To keep your gear in service and your crew safe, implement these shock-reduction strategies:

1. Minimize fall distance: Set rigging points as high as possible relative to the cut.

1. Master the soft catch: A ground worker who "dead pips" a log (holds it with no movement) puts maximum stress on the system. A ground worker who knows how to give a "soft catch"—allowing controlled rope slip—is invaluable.

1. Use the right rope: Don't use low-stretch bull rope for negative rigging if you can avoid it. Choose ropes with proper energy absorption like V-Hex or TreeBLITZ.

1. Take smaller pieces: It takes more time, but reduces potential energy in the system and keeps physics on your side.

The Rigging Plan: Planning for Shock Loading

Every time you approach a tree, develop a mental or written rigging plan that accounts for shock loading. Ask yourself:

• If this rope fails, where does the wood go?
• If this block pulls out, where does the hardware fly?
• If the tree snaps at the rigging point, which way will it fall?
• What's my contingency if something breaks?

Understanding the physics of the fall means respecting gravity's power and your equipment's limits. While we make some of the strongest ropes in the world, even the best line can be defeated by poor planning and a large enough log.

For more practical guidance on safely controlling falling wood, see our article on how arborists safely rig and control falling tree limbs.

Final Thoughts: Respecting Gravity

Gravity doesn't take days off and doesn't care about your deadlines. The physics of the fall are constant and unforgiving.

By understanding shock loading, you move from being a "wood dropper" to a professional arborist. You begin to see forces in your mind before you make a cut. You learn to listen to what your rope and tree are telling you.

Treat your rigging system with the respect it deserves, and it will keep you and your crew safe for years to come.
