Wire Pulling Rope | Cable
Double Braid Polyester Rope
Videos
Product Details
Highlights
- Very strong
- Durable
- Low stretch
- Made in USA
Description
Our premium, double-braided or “braid on braid” polyester rope is made in the USA from 100% high-tenacity polyester yarns. Double braid polyester is a great choice when you need a very strong and durable rope with very low stretch and the longest service-life. It is made by expert rope makers using modern braiding equipment and meets or exceeds the standards set by the Cordage Institute specifications for high-performance ropes.
Our ropes are white with blue and grey tracers. This design is unique to RightRope and looks great in any application. Other colors are available upon request, including plain white, any solid color, or combination of colors. Extended lead times and minimum runs may apply to custom colors.
Double braid is typically the strongest construction of rope and has a braided inner core and a braided outer jacket. This rope construction is torque free and will not hockle or kink, and can be spliced easily. Polyester has excellent abrasion resistance and ultraviolet degradation protection. Our premium double braid polyester ropes are also resistant to rot, mildew, marine growth, chemicals and petroleum products. These high-strength ropes are soft, flexible, and easy to handle.
Should I buy polyester or nylon?
There are some differences between double braid polyester and double-braid nylon.
Polyester has better abrasion resistance and UV resistance than nylon as well as much less elasticity. If you need a low stretch, durable rope, go with this polyester.
Our double braid polyester has a melting point of about 490 degrees Fahrenheit, and starts to lose strength at around 240 degrees Fahrenheit.
Nylon is slightly stronger, but is much more elastic or given to stretch. This can be an advantage or disadvantage depending on your application. If you need a high-stretch rope go with Double Braid Nylon, not this polyester.
Reviews
Specs

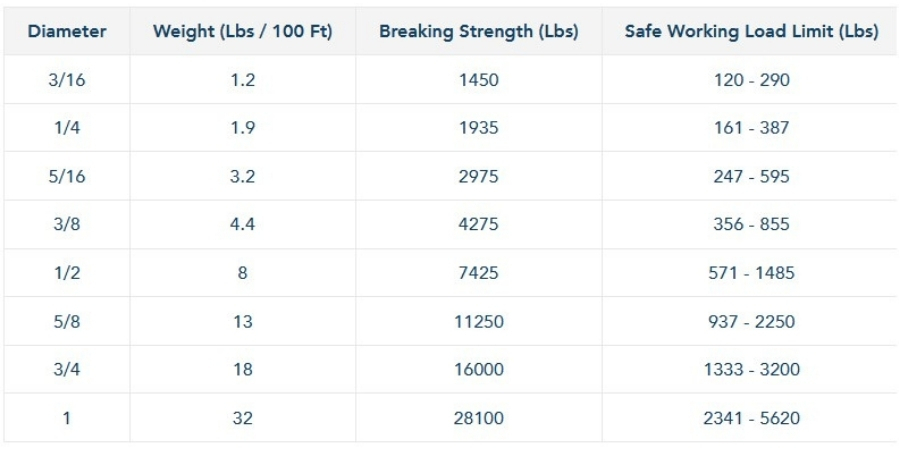

Rope Strength
Diameter | Weight (Lbs / 100 Ft) | Breaking Strength | Safe Working Load Limit (SWLL) |
---|---|---|---|
3/16 | 1.2 | 1450 | 120 - 290 |
1/4 | 1.9 | 1935 | 161 - 387 |
5/16 | 3.2 | 2975 | 247 - 595 |
3/8 | 4.4 | 4275 | 356 - 855 |
1/2 | 8 | 7425 | 571 - 1485 |
5/8 | 13 | 11250 | 937 - 2250 |
3/4 | 18 | 16000 | 1333 - 3200 |
1 | 32 | 28100 | 2341 - 5620 |
Physical Properties
Strength
Stretch
Durability
Degradation Resistance
Abrasion Resistance
Rot Resistance
Sunlight / UV Resistance
Petroleum Resistance
Mold / Mildew Resistance
